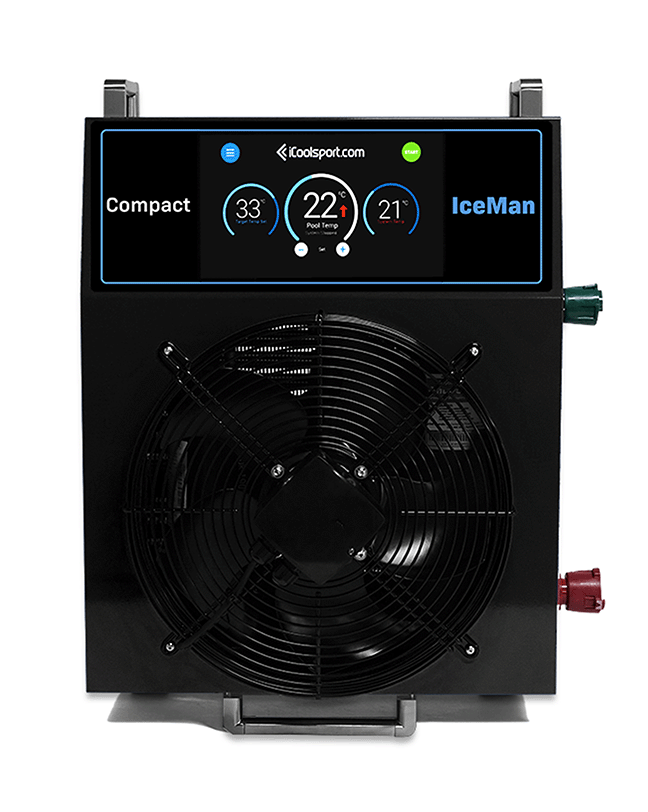

Iceman Hong Kong – iCoolSport | Kung Sheung

Operation

• Lowest Temperature: 2ºC (35ºF) Software limited for safety
• Highest Temperature: No heating
• Automatic Operation:  ONE TOUCH START intelligent power management system
• 24/7 Operation: Allowed

Power

• Line Voltage: Manufactured in either 110V or 220V (NOT MULTI-VOLTAGE)
• Cooling power: 7800 Watts
• Heating Power: Chill only
• Running Power 220V (& Max.): 7.5 Amps (14 Amps)
• Running Power 110V (& Max.): 14 Amps (28 Amps)
• Frequency: 50 Hz / 60 Hz
• Compressor: Panasonic or Mitsubishi High Efficiency Rotary
• Refrigerant Gas: Hychill Minus 40 or R290 – Zero environment effect – 350 grams

Finishes & Materials

• Chassis: Marine Grade Aluminium
• Coatings: Heat cured high strength epoxy – High Gloss Black
• Heat Exchanger: Titanium
• Heat Pump Plumbing: Commercial Grade Copper
• Handles: Stainless Steel
• Wheels: Polyurethane
• Side Panels: Co-extruded Acrylic

Size & Weight

• Net Height x Width x Depth in mm: 650 x 550 x 350
• Net Weight Kg/ Pounds: 39 Kg / 85 Lbs
• Size / Weight in STANDARD SHIPPING CRATE: 650 x 470 x 850 mm / 52 Kg (103 Lbs)
• Size / Weight in ICOOL TRAVEL CASE: 880 x 490 x 830 mm / 62 Kg (115 Lbs)

Pool Compatibility

• Recommend pool size: Up to 2000 L
• All ICOOL POOLS have connections to Compact included as standard
• All OTHER POOLS require 1x water inlet and 1x water outlet 19mm (1inch)

Display

• Software-chip: Developed by iCool
• Display: Animated 10 inch Full HD Capacitive Touch Screen
• Remote Control Screen: Optional
• Remote Control over WiFi: Yes with built-in screen model

Electrical

• Earth Leak Device: Yes 30 Milliamps instant shut down for maximum user safety
• Power Plug: 3 Pin heavy duty to suit country (UK, US, AUS or EU)
• Air flow Capacity: Low noise fan 2000 cubic ft per minute
• Fan Size: 350 mm
• Sound: 59 dBA tested at 1.5m
• Heat Pump Type: Rotary Compressor
• Water Pump: Powered by the Compact via the built-in RCD electrical safety device

Inclusions

• 10 inch HD Built-In Splash Proof Touch Screen
• Industrial Water Circulation Pump: For 220V machines, a Davey QB035 spa type pump is supplied. For 110V machines, a Marlin ECO6000 world voltage pump is supplied.
• Complete hose set with iCool quick release fittings:
  • 1x 18 mm x 3000 mm
  • 1x 18 mm x 500 mm
  • 1x 12 mm x 3000 mm
• Standard pool fittings to suit 19mm (1inch) pool water outlets
• Power Plug to suit country

Further instructions and information can be found in the installation manual button below. You can find manuals for our other iCool products on our website's support page, and additional resources can be found on the iCool YouTube channel.

Country of origin: designed and made in Australia

Warranty: Standard One Year Warranty  – see our Terms & Conditions
