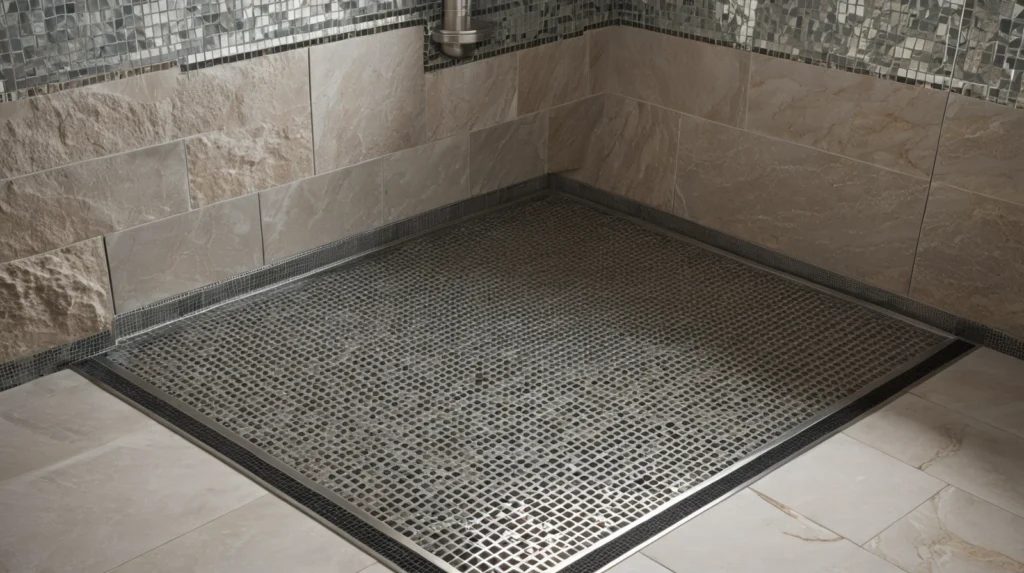

Steam Room Waterproofing and Drainage Checklist for Commercial Projects

A steam room is one of the most demanding wet zones in a hotel, club or premium residential facility. It is built to contain continuous high-temperature vapour against cold envelope surfaces; to drain steadily while a guest is in the room; to avoid harbouring biofilm behind walls where nobody looks; and to remain in service without the operator needing to chip out a tile to find a leak. Hong Kong makes all of this harder. Year-round humidity, dense floor plates and an operating culture that expects daily uptime put a premium on disciplined waterproofing and drainage detailing, not improvised solutions.

Most steam-room failures across Hong Kong, Macau and the Greater Bay Area are the same set of issues seen internationally:

• Vapour migration through weak details (corners, penetrations, transitions between tile and ceiling).
• Slow drainage from inadequate floor fall design.
• Water trapped in ceiling voids above occupied space.
• Membrane failure at laps or terminations.
• Traps drying out (especially after long closures), letting sewer gas or pests into the room.

This article sets out the engineering decisions behind a reliable commercial steam-room envelope, and a 25+ item checklist that projects can use as a starting brief. It complements Kung Sheung's broader sauna-and-steam design position in Sauna and Steam Room Design in Hong Kong and our commercial steam-room engineering reference.

The waterproofing strategy must be set in design, not improvised in construction:

• Envelope classification. Treat the steam room as a separate waterproof envelope, including walls, ceiling, transitions and under-floor plumbing.
• Slab falls and door thresholds. Falls should be designed for cleaning, condensate and overflow; thresholds must hold water when the door is briefly open.
• Substrate uniformity. Specify a single substrate type across the envelope; mixing gypsum, cement-board and concrete against one membrane can produce inconsistent adhesion and movement behaviour.
• Movement joints. Plan structural, expansion and construction joints in advance; map them against membrane laps, tile joints and trim.
• Penetrations. Drive every pipe, light, speaker and sensor through planned sleeves or boots.
• Access. Plan access panels and removable trim for service isolation, steam-line inspection and trap cleaning.

Membrane systems are only as good as the substrate. Hong Kong's humidity makes substrate preparation especially important because damp substrates compromise adhesion:

• Substrates to be dry below the threshold specified by the membrane manufacturer (verified with a surface moisture meter).
• Substrates to be dimensionally stable, fully cured and free from laitance, dust, grease and bond breakers.
• Corners to be reinforced with bonded fillets, pre-formed collars or single-component liquid detailing as required by the system.
• Substrate transitions to be taped or sealed before the main membrane.
• Cracks or shrinkage in the substrate repaired first; visible cracks are not a substrate for a "self-healing" membrane.

Two membrane families dominate the commercial steam-room envelope:

• Sheet membranes. Factory-controlled thickness and laps; dependent on detailing and workmanship at seams. Useful for large flat runs.
• Liquid-applied membranes. Specified to ANSI A118.10 for bonded, load-bearing wet-zone systems under tile [Source 2]. Excellent for detailing around penetrations and corners.

For most commercial steam rooms the choice is not "sheet or liquid", it is "system". A wet-zone system typically comprises: a primer matched to the substrate; the membrane applied at the wet-film thickness specified by the supplier; reinforcement at corners, junctions and changes of plane; bonded tile installation per system documentation.

Performance expectations should be anchored to a recognised test method — ASTM C627 gives the tile-installation performance baseline [Source 3] — and tiling practice more generally to BS 5385 [Source 4]. In Hong Kong, BD PNAP APP-105 covers the local framing for waterproofing in susceptible areas [Source 1]; the project team should align the specification to it without quoting it as a legal guarantee.

Drainage is where steam rooms most often misbehave. The drainage plan should, at minimum:

• Use a stainless floor drain sized for the condensate rate under peak operating conditions (with margin).
• Set floor fall between 1:80 and 1:60 unless the design supports steeper falls without breaking door thresholds or accessibility.
• Use trapped drains to prevent sewer gas ingress.
• Use trap primers or maintenance-fill regimes for drains expected to sit idle for long periods.
• Provide access to traps for cleaning without breaking waterproofing.
• Coordinate floor drains with structural slab thickness; trench drains may be needed where falls are generous.
• Provide dry-floor capacity outside the steam-room door for slip resistance.

Trap primers are commonly sized via the ASPE Data Book [Source 5].

Vapour is the silent partner of a steam room. The HVAC and vapour-control plan deserves its own design discipline, which is expanded on in Hotel Spa Engineering in Hong Kong; for the steam room itself, the key ideas are:

• The envelope should be vapour-closed. Class III vapour retarders are inadequate.
• The ceiling geometry should shed condensate back into the room rather than into ceiling voids.
• Steam lines and generator cabinets should drain back to the generator, not into the room.
• Adjacent rooms must be designed for condensation risk, not just normal occupancy.
• HVAC sizing should consider the latent and sensible loads of the steam envelope plus the adjacent area; the ASHRAE Handbook — HVAC Applications is the engineering reference [Source 6].

Material selection affects service life and operator confidence.

• Steam-room accessories. Specify stainless 316L for grilles, fasteners, drain covers, door handles and trim where 304 would be challenged by chloride exposure or cleaning chemicals [Source 8].
• Tile and stone. Choose slip-resistant tile rated for wet-zone performance; verify compatibility with the membrane and adhesive system. Stone used inside a steam room should be specified for repeated thermal cycling.
• Sauna timber. Sauna benches, cladding and thresholds need species that tolerate heat and humidity (Western Red Cedar, hemlock, abachi); proper detailing at junctions prevents standing water on timber.
• Adjacent timber. Skirting, doors and decorative elements outside the steam envelope should also be species-selected and detailed against moisture.

Local regulatory touchpoints for a commercial steam room:

• Buildings Department. Waterproofing under PNAP APP-105 [Source 1]; fire-safety and material non-combustibility as relevant under the BD code framework.
• WSD. Plumbing tie-ins, water-meter sizing, hot-water delivery and backflow prevention as part of the overall building supply [Source 7].
• EMSD. Electrical routing inside the steam envelope aligned against the EMSD COP for the Electricity (Wiring) Regulations (via [engineering services](https://kungsheung.com/services-2/)).
• FEHD. Where the steam room is part of a public-bathing or hospitality operation, FEHD hygiene guidance may apply.

The architect and MEP consultant remain responsible for confirming the regulatory frame at submission; Kung Sheung's role is to bring a coordinated wet-zone engineering perspective.

A reliable protocol for steam rooms is brief, repeatable and documentable:

1. Visual inspection of substrate and prep before membrane — photos per zone.
2. Wet-film thickness check of the membrane against the system spec.
3. Flood test of the floor and upturn area — typically 24 hours minimum, with documented absence of leaks.
4. Seam and penetration inspection after tile installation but before grouting.
5. Drain and trap test — fill, observe drain-down, confirm trap function.
6. Steam test once the generator is energised — observe condensate behaviour over a defined cycle.
7. Final pre-handover walkthrough with operator and an as-built maintenance brief.

Each step is signed off on a single sheet that goes into the project archive and the operator's manual.

Design phase.

1. Confirm envelope extent, ceiling geometry and adjacent spaces.
2. Confirm substrate uniformity across walls, ceiling and floor.
3. Confirm structural falls, threshold heights and accessibility requirements.
4. Specify membrane system (sheet, liquid-applied, or hybrid) per project conditions.
5. Plan reinforcement at corners, junctions and penetrations.
6. Map movement joints against membrane laps and tile.
7. Plan penetrations and sleeves for every pipe, light, speaker, sensor.
8. Plan access panels for service valves, traps and steam lines.
9. Set vapour-control class for walls, ceiling and floor.
10. Coordinate HVAC envelope loads with ASHRAE Handbook basis.
11. Specify trap primers or trap-maintenance regime.
12. Coordinate stainless 316L specifications for accessories.

Construction phase.

1. Inspect substrate dryness and surface prep before membrane.
2. Confirm repair of cracks, laitance and bond-breakers.
3. Apply membrane to the specified wet-film thickness; record readings.
4. Reinforce every corner, penetration and change of plane.
5. Lap and terminate the membrane per the system spec.
6. Flood-test the floor and upturn area for at least 24 hours; record readings.
7. Photograph every hidden layer before tiling.
8. Verify tile and adhesive compatibility with the membrane.
9. Install floor drains, traps, primers and clean-outs before final finishes.
10. Pressure-test plumbing before tiling.
11. Test the steam generator and line drainage before commissioning.
12. Conduct the steam-room commissioning walk-through.
13. Sign off final inspection; archive test records.

Handover and operations.

1. Hand operator an O&M manual with inspection reports and maintenance plan.
2. Train operators on trap priming, condensate checks and cleaning routines.
3. Schedule a 3-month and a 12-month follow-up review.
