iCoolSport Portable Chillers

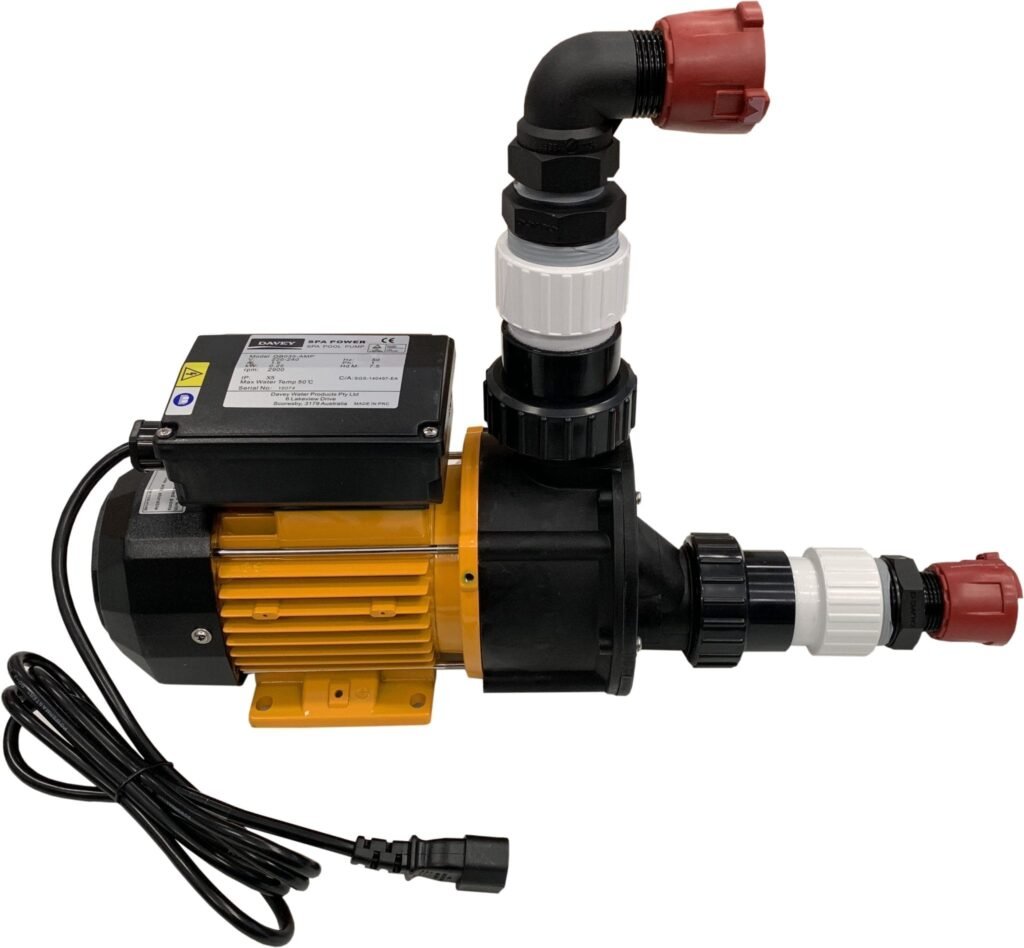

Davey Water Circulation Pump inc Fittings for Compact Chillers Hong Kong – iCoolSport | Kung Sheung

The Davey Water Circulation Pump with fittings is specified for iCoolSport compact chillers. It features a 316SS pump shaft for corrosion resistance, double insulation to…

Commercial Route: Technical review before quotation
Service Region: Hong Kong · Macau · Greater Bay Area

Project Fit Review

Confirm suitability before procurement.

Share project drawings, site constraints or target usage. Specifications, installation interfaces and commercial terms are reviewed against the actual project.

Request Technical Review WhatsApp

Selection Workflow

Confirm fit before this product is specified.

Use this page as a shortlist marker. Kung Sheung checks drawings, interfaces and service access before recommending the final model route.

Request Selection Review Compare Families

01 Send drawings or constraints

Layouts, plant-room access, water/drainage assumptions and operating profile.

02 Confirm technical fit

Model suitability, service clearance, control interface and maintenance access.

03 Define quotation basis

Supply scope, documentation requirements and installation support route.

Overview

Technical Overview

Davey Water Circulation Pump inc Fittings for Compact Chillers is presented for project-specific review within Kung Sheung’s commercial bathroom and wellness engineering catalogue.

Manufacturer Product Details

Specifications

General information

Double insulated to water circuit – provided with an Equipotential Bonding Point for AS/NZ 3000 wiring standards
Stainless Steel Pump Shaft – Corrosion resistant 316SS pump shaft to ensure years of trouble-free use, even in salt water spa pool applications, for an extended pump life
Energy Efficient – Single and two speed models available to help conserve energy during filtration cycles
Flexible Installation – Pump housing can be turned 180° for easy installation of pipework, horizontal or vertical
Quiet – Large suction and discharge outlets allow for higher performance but at lower noise levels, ensuring a powerful yet relaxing spa experience
Enhanced Pump Design – Shielded yoke design helps protect the motor from any adverse leaking from the wet end whilst still meeting all industry safety standards

Electrical Data

Product Code: FP-DQB035
Speed: single
Voltage: 220 – 240V
Phase: Single
Supply frequency: 50Hz
Start current: 5A
Run current: 1.6A
Motor input power: 250W
Motor output power: 180W
RPM: 2900
Enclosure class: IP55
Insulation class: F
Approval no.: A/10EA
Lead length: 3 metres
Max. water temp: 40ºC
Max. ambient temp: 50ºC
Noise level: 56dBa

Dimensions

Thread plug type: 40mm FBT (Pitch 3.175mm) – Amp only plug type
L x W x H (in mm): 317 x 153 x 183
Inlet and outlet PVC: 40mm
Net Weight: 5.1 Kg

Project Review Considerations

Confirm the exact model, configuration and compatible installation components against the approved schedule.
Review connections, access, service clearance and finish coordination before procurement.
Verify current manufacturer documentation and site conditions before final selection.

For projects in Hong Kong, Macau and the Greater Bay Area, Kung Sheung can review drawings, schedules and site constraints before commercial quotation.

Request Technical Review

Technical source: iCoolSport product page. Confirm the latest manufacturer documentation before specification.

Engineering Review

Installation & Serviceability Considerations

Site Interfaces

Confirm power, water, drainage, access and maintenance clearance against drawings.

Operating Requirements

Review usage frequency, water-treatment needs and service access before specification.

Quotation Basis

Final supply scope and commercial terms are issued after technical fit is reviewed.

Common Questions

Technical FAQ

Can your HK team install Davey Water Circulation Pump inc Fittings for Compact Chillers for a hotel or sports facility?▼

Yes. Kung Sheung's HK engineering team handles full installation across Hong Kong, Macau and the Greater Bay Area since 1975.

What is the practical capacity and usage profile for Davey Water Circulation Pump inc Fittings for Compact Chillers?▼

Capacity depends on your operating plan (hotel, clinic, or team environment). We provide a project-specific sizing recommendation before deployment.

Before procurement, which technical points should my operations team confirm?▼

For this model, confirm unit weight: 5.1 kg. Share your installation area and electrical/water setup, and we will finalize a compliant HK deployment plan.
