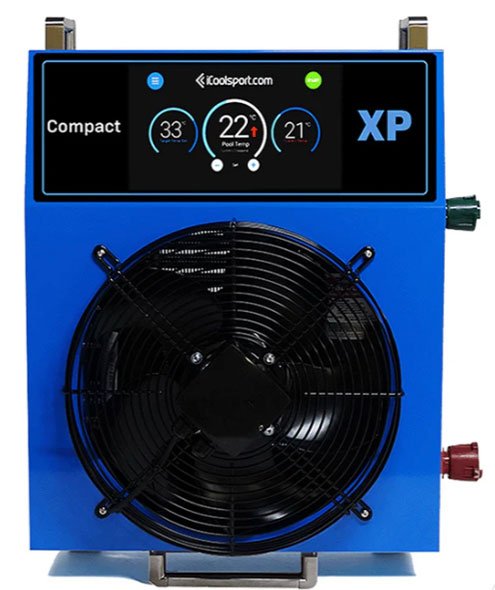

iCoolSport Compact XP
iCoolSport Portable Chillers

iCoolSport Compact XP

The iCoolSport Compact XP is a high-capacity portable chiller presented for large-scale commercial cold-plunge projects, with a recommended pool size up to 2000L and 7200W…

Reference / SKU
CS-XP-1
Commercial Route
Technical review before quotation
Service Region
Hong Kong · Macau · Greater Bay Area

Project Fit Review

Confirm suitability before procurement.

Share project drawings, site constraints or target usage. Specifications, installation interfaces and commercial terms are reviewed against the actual project.

Request Technical Review WhatsApp

Selection Workflow

Confirm fit before this product is specified.

Use this page as a shortlist marker. Kung Sheung checks drawings, interfaces and service access before recommending the final model route.

Request Selection Review Compare Families
01 Send drawings or constraints

Layouts, plant-room access, water/drainage assumptions and operating profile.

02 Confirm technical fit

Model suitability, service clearance, control interface and maintenance access.

03 Define quotation basis

Supply scope, documentation requirements and installation support route.

Overview

Technical Overview

Compact XP (CS-XP-1) is presented for project-specific review within Kung Sheung’s commercial bathroom and wellness engineering catalogue.

Manufacturer Product Details

Finishes & Materials

  • Chassis: Marine Grade Aluminium
  • Coatings: Heat cured high strength epoxy – Blaze Blue
  • Heat Exchanger: Titanium
  • Heat Pump Plumbing: Commercial Grade Copper
  • Handles: Stainless Steel
  • Wheels: Polyurethane
  • Side Panels: Co-extruded Acrylic

Size & Weight

  • Net Height x Width x Depth in mm: 650 x 550 x 350
  • Net Weight Kg/ Pounds: 39 Kg / 85 Lbs
  • Size / Weight in STANDARD SHIPPING CRATE: 650 x 470 x 850 mm / 52 Kg (103 Lbs)
  • Size / Weight in ICOOL TRAVEL CASE: 880 x 490 x 830 mm / 62 Kg (115 Lbs)

Pool Compatibility

  • Recommend pool size: Up to 2000 L
  • All ICOOL POOLS have connections to Compact included as standard
  • All OTHER POOLS require 1x water inlet and 1x water outlet 19mm (1inch)

Display

  • Software-chip: Developed by iCool
  • Display: Animated 10 inch Full HD Capacitive Touch Screen
  • Remote Control Screen: Optional
  • Remote Control over WiFi: Yes with built-in screen model

Electrical

  • Power Plug: 3 Pin heavy duty to suit country (UK, US, AUS or EU)
  • Air flow Capacity: Low noise fan 2000 cubic ft per minute
  • Fan Size: 350 mm
  • Sound: 59 dBA tested at 1.5m
  • Heat Pump Type: Rotary Compressor
  • Water Pump: Powered by the Compact via the built-in RCD electrical safety device

Inclusions

  • 10 inch HD Built-In Splash Proof Touch Screen
  • Industrial Water Circulation Pump: For 220V machines, a Davey QB035 spa type pump is supplied. For 110V machines, a Marlin ECO6000 world voltage pump is supplied.
  • Complete hose set with iCool quick release fittings: 1x 18 mm x 3000 mm
  • 1x 18 mm x 500 mm
  • 1x 12 mm x 3000 mm
  • Standard pool fittings to suit 19mm (1inch) pool water outlets
  • Power Plug to suit country

Project Review Considerations

  • Confirm the exact model, configuration and compatible installation components against the approved schedule.
  • Review connections, access, service clearance and finish coordination before procurement.
  • Verify current manufacturer documentation and site conditions before final selection.

For projects in Hong Kong, Macau and the Greater Bay Area, Kung Sheung can review drawings, schedules and site constraints before commercial quotation.

Request Technical Review

Technical source: iCoolSport product page. Confirm the latest manufacturer documentation before specification.

Engineering Review

Installation & Serviceability Considerations

Site Interfaces

Confirm power, water, drainage, access and maintenance clearance against drawings.

Operating Requirements

Review usage frequency, water-treatment needs and service access before specification.

Quotation Basis

Final supply scope and commercial terms are issued after technical fit is reviewed.

Common Questions

Technical FAQ

Can your HK team install iCoolSport Compact XP for a hotel or sports facility?▼

Yes. Kung Sheung's HK engineering team handles full installation across Hong Kong, Macau and the Greater Bay Area since 1975.

What is the practical capacity and usage profile for iCoolSport Compact XP?▼

Capacity depends on your operating plan (hotel, clinic, or team environment). We provide a project-specific sizing recommendation before deployment.

Before procurement, which technical points should my operations team confirm?▼

For this model, confirm unit weight: 45 kg; SKU: CS-XP-1. Share your installation area and electrical/water setup, and we will finalize a compliant HK deployment plan.
